GJYXFCH Optical Fiber Cables

Name: GJYXFCH Optical Fiber Cables
Brand: Corning /CY COM
Price: 1 USD

Wholesale GJYXFCH Optical Fiber Cables from china suppliers

Brand Name : Corning /CY COM

Model Number : GJYXCH / GJYXFCH

Certification : ISO9001/CE/ROHS

Place of Origin : Shenzhen,China

MOQ : 1000M

Payment Terms : T/T, Western Union

Supply Ability : 200KM Per week

Delivery Time : 3-7days

Packaging Details : Wooden Reel

Fiber type : OS1 / OS2 / OM1 / OM2 / OM3 / OM4

Jacket Material : PE

Fiber quality : 1-2 / 4-6 / 8-24

Jacket Color : Black/Customized

Cable diameter : 2.0x5.0/ 2.0x5.0 /3.0x9.0

Package : Wooden reel ,3KM/reel

Application : FTTH

Contact Now

FTTH HOME CABLING SYSTEM GJYXCH GJYXFCH Fiber optic Drop Cable With steel wire

Description:

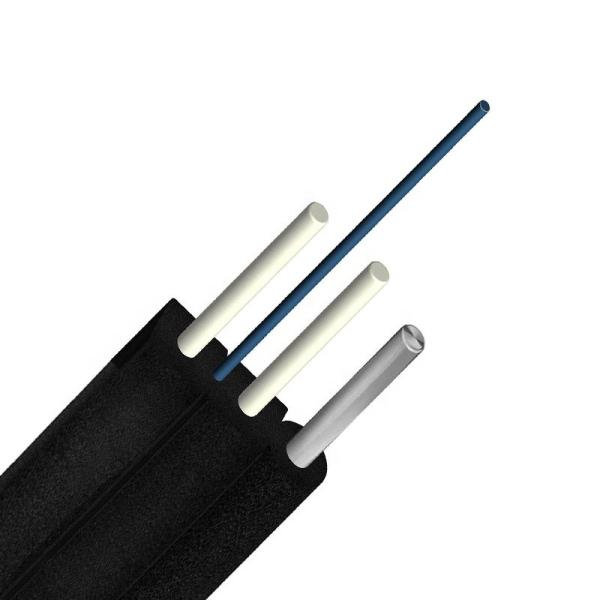

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Last this cable is completed with black or white LSZH sheath.

Features:

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel FRP/Steel wires strength members ensure good performance of crush resistance to protect the fiber.
3. Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
4. Simple structure, light weight and high practicability.
5. Novel flute design, easily strip and splice, simplify the installation and maintenance.
6. Low smoke, zero halogen and flame retardant sheath.

Application:

1. Outdoor aerial application
2. Used in the FTTH projects
3. High speed optical routes in building
4. High performance optical network operation

Technical Data

Part Number	Self-supportiing Drop Cable GJYXCH
Fiber Count	4 core (1 core, 4 core also)
Strength Member	One self-supporting 1.0mm steel wire and Two parallel 0.45mm steel wire
Cable Dimension (WxH approx.)	(2.0±0.2)x(5.0±0.2)mm
Out Jacket	LSZH
Out Jacket color	black or white
Application	FTTH cable (Fiber to the home), used indoor, Access network

Items		Unit	G.657A1 Specification
Mode Field Diameter	1310nm	μm	9.0±0.4
Mode Field Diameter	1550nm	μm	10.1±0.5
Cladding Diameter		μm	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		μm	≤0.5
Coating Diameter		μm	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0
Cable Cutoff Wavelength		nm	λcc≤1260
Attenuation (max.)	1310nm	dB/km	≤0.35
Attenuation (max.)	1550nm	dB/km	≤0.21
Macro-Bending Loss	1turn×10mm radius@1550nm	dB	≤0.75
Macro-Bending Loss	1turn×10mm radius@1550nm	dB	≤1.5

Performance

Product Tags:

NO.	Item		Requirement
1	Allowable Tensile Strength	Short Term	600N
		Long Term	300N
2	Allowable Crush Resistance
