Blue Green FTTH SC UPC APC Quick Assembly Connector

Name: Blue Green FTTH SC UPC APC Quick Assembly Connector
Brand: CY COM
Price: 1 USD

Wholesale Blue Green FTTH SC UPC APC Quick Assembly Connector from china suppliers

Brand Name : CY COM

Certification : ISO ROSH

Place of Origin : Shenzhen China

Product name : Fast Connector

Color : Green

Connector : SC UPC APC

Length : 55MM

Insertion cycle : more than 1000 times

Application : Telecom networks FTTX CATV

Contact Now

Blue Green FTTH SC UPC APC Quick Assembly Connector

FTTH Blue Green Quick Connector SC UPC/APC Fiber Optic Fast Connector for Field Assembly

Description:
The Fiber Optic Mechanical Splicer is used for fast splice and has very good performance. Mechanical splicer can realize mechanical splice, Compared with the traditional hot melt technology, the biggest advantage is no welding machines to be needed, the power supply and other hard conditions. Anyway it can simply realize splice by manual and make the construction convenient. It can greatly reduce the cost of welding at the same time.

Specification

Fiber Optic Mechanical Splicer
IL	≤0.15dB
RL	≥40dB
Optical fiber diameter	125μm
Operating Mode	Single and double mode
Tensile strength	>3kg
Operating Temperature	-40~+85℃
Fiber tight strength	>250g

Features

- Substitute for operation of embedded optical fiber connector for live and reduce the cost.
- For cable damage
- Easy for connection by simple and exquisite V-groove structure
- The selection of high quality optical fiber match liquid which is less volatile ensures the long-term to work.
- No need connection tool
- Tensile strength is 3kg max
- Stability of connection by stainless holder
- Easy for re-assembling & disassembling without special tool
- Can be reconnected in the field

Application

Telecom network

Data network

Data transmission

LAN

Test Equipment

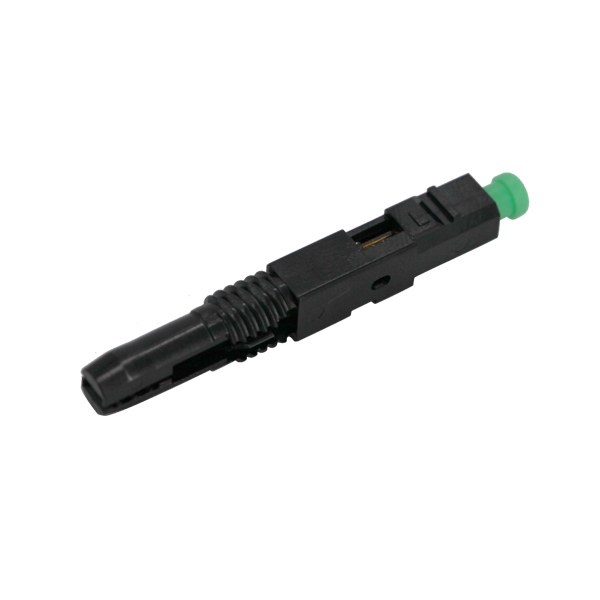

Product Picture

Blue Green FTTH SC UPC APC Quick Assembly Connector
